VisionX 40" Xmitter Prime LED Lightbar

VisionX 40" Xmitter Prime LED Lightbar

On sale$1,928.99
Retail Price:$2,411.25
Your Savings:$482.26(20%)
Part Number:XIL-P72

Choose Options

Beam Type

Prime Drive for Enhanced Reliablity and Output - 3 Watt LED


> Integrated Electronic Thermal Management (ETM)

> New Generation LED is Driven to 90% Efficiency

> Patent Pending Integrated Mounting System

> PWM Integrated Dimming Circuitry

> 90% Optically Pure

Technical Details:

Lumens: 16,516 LM

Input Voltage

10-46V DC

Optic Efficiency


Driven At


Amp Draw (12V DC)


IP Rating


Vibration Rating


Operating Temperature

-40 Celsius ~ +80 Celsius

Added Features

Weatherproof Deutsch Connector with Plug-and-Play Harness

Billet Clamp Tube Frame Mounts Available

Extruded 6061 Aluminum Housing

Polycarbonate lens

Prime Drive Technology - The Future of LED

The new Xmitter Prime LED Light Bar's powerful design and Prime Drive Technology make the Xmitter Prime everything you need and more. Featuring a 50,000 hour lifespan, PWM Dimmability, powerful 3 watt LEDs and Electronic Thermal Management all with extremely low amp draw, the Prime Series from Vision X is the most advanced LED light bar technology on the market.

Rugged and Durable - Up for Any Challenge

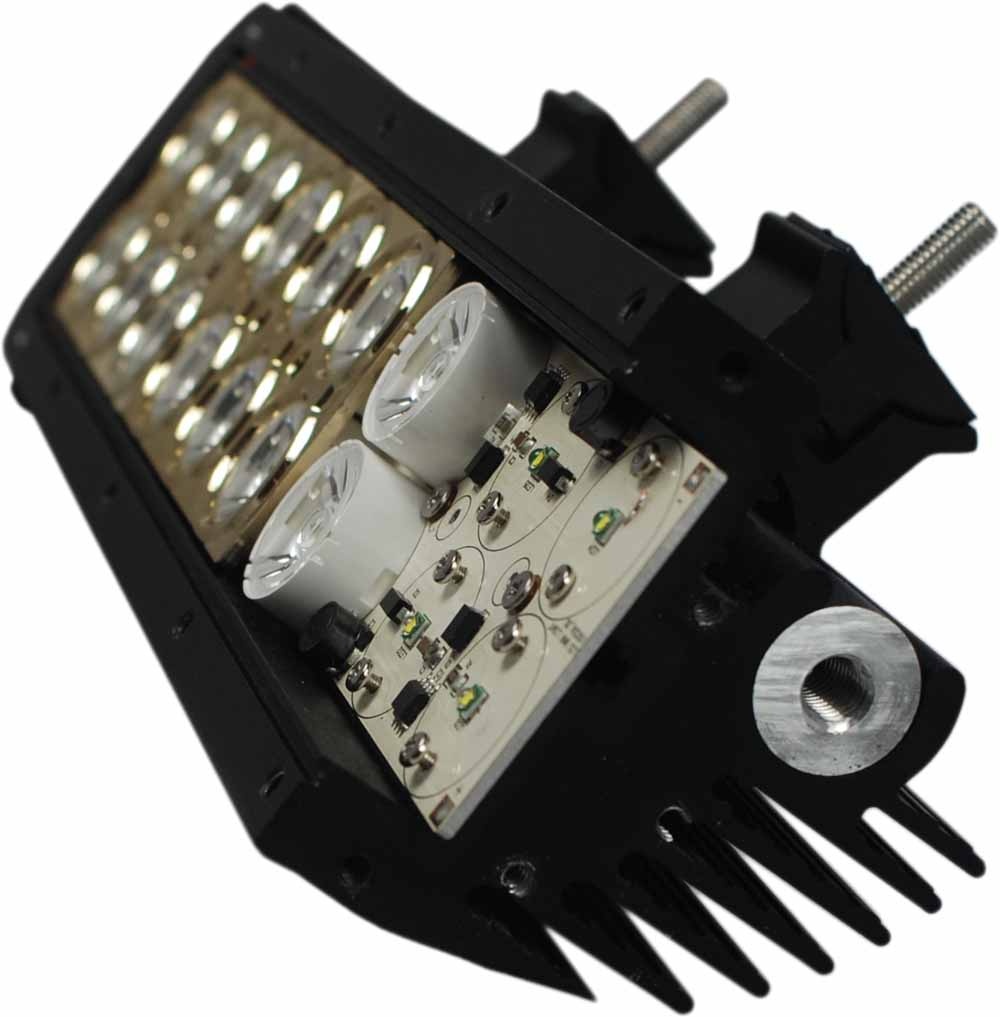

Being manufactured from extruded 6061 aluminum, the Xmitter Prime is tough enough for all conditions. The front has the ultimate protection of an unbreakable polycarbonate lens, while the bottom has the Vision X designed stud mount with vibration dampening rubber on the single stack, and a trunion bracket for mounting on the double stack allowing for unmatched adjustability. And with an IP rating of 68, the Xmitter Prime is totally protected from dust and is protected against long periods of water submersion under pressure. Xmitter Prime will do everything you need it to, no matter what the weather conditions are.

Prime Drive - The Smart LED

With Vision X Prime Drive, you are getting the most light possible. Period. The most Lumens per LED whileprolonging the life of the LEDs and maintaining the lowest amp draw possible. And the Xmitter Prime utalizes 3 Watt LEDs, for the perfect mix between high light output and low amp draw.

Electronic Thermal Management

ETM monitors the heat output of the LEDs in order to maintain safe operating temperatures and prolong the LED life span to its full 50,000 hour potential.

Pulse Width Modulator

With the Pulse Width Modulator technology, the light is dimmable with the use of a separate controller to allow for optimum flexibility.


The Xmitter Prime is driven at 90%, meaning less energy wasted and more light output. This allows for the most lumens while maintaining the optimal operating conditions for the LEDs.


With 90% optically pure Vision X optics, you can be sure that you are getting the most distance and most accuracy out of each LED.


The Vision X Xmitter Prime Series is the lighting solution for the brightest, longest lasting, and most durable light on the market. The Xmitter Prime is available in both single and double stack bars, as well as in 20° narrow and 40° wide optic patterns, having a solution to any lighting need.

10* Pattern- Spot

40* Pattern- Wide
