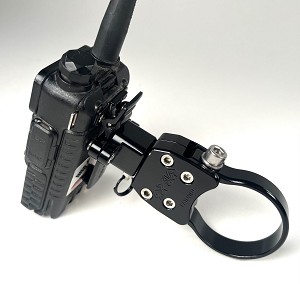

The Axia Alloys quick release handheld radio mount works with any handheld radio with a belt clip.
This mount attaches to the radios belt clip by clamping tightly. Once attached the radio is easily accessible by pulling the release pin to detach the radio from the base. The belt clamp stays with the radio so that it can be quickly reattached to the base.
Offers full 360' rotation for mounting on horizontal, vertical, or tubing of any angle.
Works with belt clips up to 1.0 inch wide (large belt clips can be modified to fit)
OEM Roll Cage Tubing Diameters
POLARIS
Pro 2 seat and 4 seat 2.0" Top Crossbars 1.75"
Turbo S 1.75"
XP1000 AND XP4 1000 1.75”
XP Turbo and XP4 Turbo 1.75”
RZR 900 2015 and up 1.75”
2014 and older RZR’s Perimeter 1.75”
2014 and older Polaris Ranger and RZR and RZR S and XP Rear Harness Bar and Rear Bumper crossbars 1.5” (4 seat versions have a 1.25” rear top crossbar as well)
General (Pro Fit cage NOT ROUND use PF-OUT & PF-IN clamps)1.75” top crossbar only (rearview mount)
Ranger (Pro Fit cage NOT ROUND use PF-OUT & PF-IN clamps)1.75” rear harness bar only
Ranger Crew (Pro Fit cage NOT ROUND use PF-OUT & PF-IN clamps) Use 9” Bolt On mirror for rearview
Polaris RZR 170 1.25"
YAMAHA
YXZ 1000 1.75" Perimeter Top crossbars 1.5”
Rhino Perimeter 1.75” Top Crossbars 1.5”
Rhino Steering column 1.5”
Viking and Viking 6 seater 2.0”
Wolverine Perimeter 2.0” Top Crossbars 1.5”
KAWASAKI
Kawasaki Teryx KRX 1.75 Perimeter 1.5? Some Top Crossbars
Kawasaki Teryx / Teryx 4 Perimeter 1.875” Top Crossbars 1.7”
HONDA
Talon 2.0"
Pioneer 1000 1.75”
Pioneer 700 1.625”
Pioneer 500 1.625”
Big Red 1.625”
ARCTIC CAT
XX 1.75?
Wildcat / Wildcat 4 1.75?
Prowler (must have aftermarket cage installed)
CANAM
Maverick X3 Perimeter 2 seat and 4 seat 1.85"
Maverick X3 Some top crossbars are 1.5"
Maverick X3 Rear harness bar 2.5"
Maverick Sport X XRC (Pro Fit cage NOT ROUND use PF-OUT & PF-IN)1.85” on all other round tubes on cage. 1.5? on bumpers
Maverick Trail (Profile cage NOT ROUND use PF-OUT & PF-IN)1.85” on all other round tubes on cage. 1.5? on bumpers
Commander 2.0”
