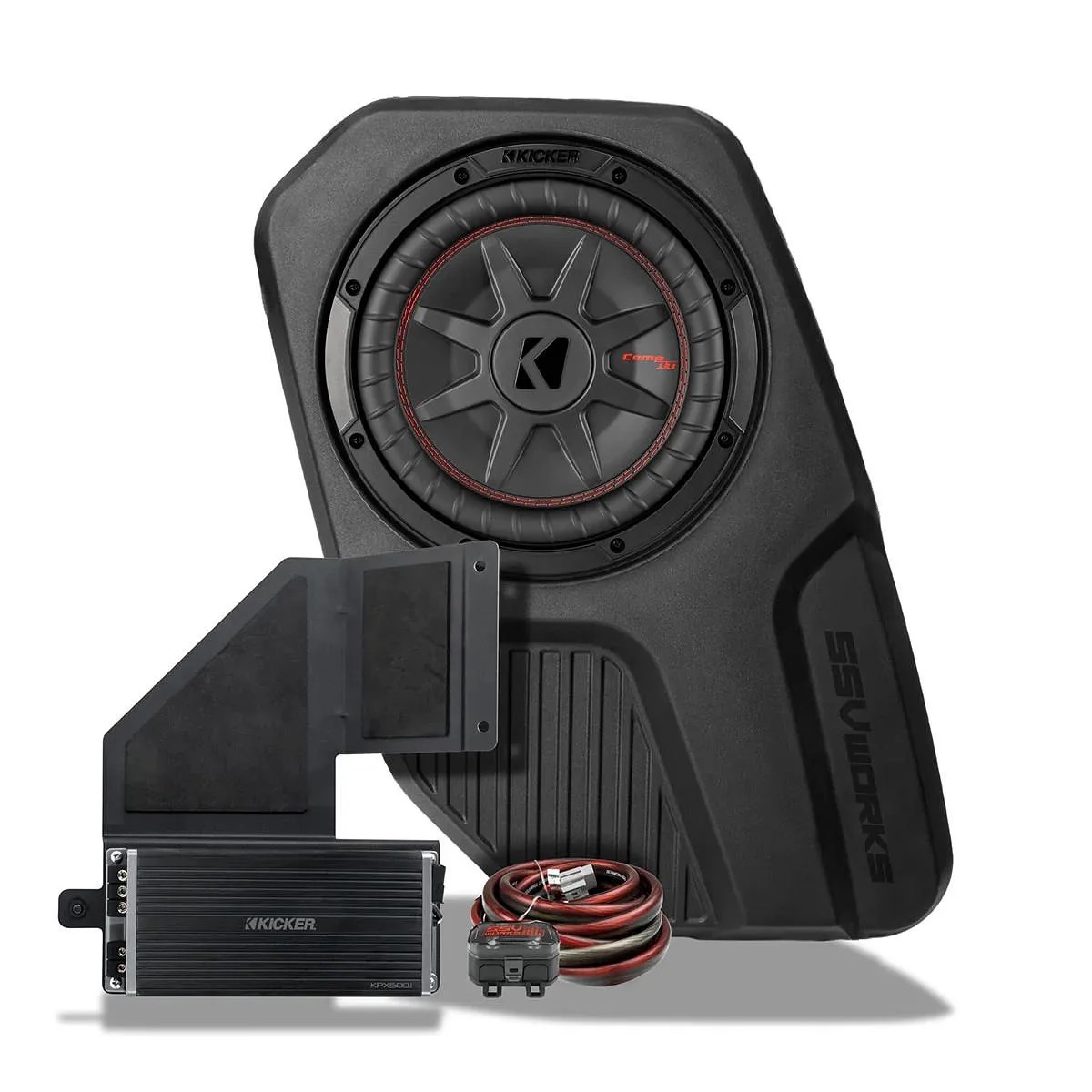

SSV Works Ford Bronco 4-Door Plug-&-Play Complete 10" Subwoofer Kit
Whether your Bronco has the B&O subwoofer, the Visteon subwoofer, or no sub at all, this is a true plug-&-play upgrade. We use the factory subwoofer output harness, so you mount the amp and enclosure, run the wiring, and you’re done with no cutting or splicing.
This Bronco add-on 10" subwoofer delivers 800 watts of power for deep, hard-hitting bass that transforms the entire system. It adds the low-end weight and impact your music has been missing, so every track feels bigger and more immersive.
This system is designed for clean integration on the driver side, with the enclosure mounting on the driver side and the amp + amp plate tucking under the driver-side panel. Everything uses factory mounting locations for an OEM-level fit, with no custom brackets or guesswork.
If your Bronco is equipped with the Visteon or B&O factory subwoofer, FORScan is not required. If your Bronco did not come with a factory subwoofer, you’ll need to use FORScan to enable the factory subwoofer output harness.
Features
- SSV Works. The Leader in Off-Road Audio.
- Plug-&-Play: True plug-&-play installation.
- Deep Bass: Add the low-end your system is missing.
- Trail Ready™: Built to handle dust, water, and the harshest riding conditions.
- Please check the Compatibility tab for vehicle fitment.
- Patent Pending.
Specifications
Kicker CompRT
- Max Power: 800 Watt
- RMS Power: 400 Watt
- Subwoofer Size: 10"
- Sensitivity: 84.8db
- Warranty: 1-Year
Kicker KPX500.1
- Max Power: 750 Watt
- Freq Response: 10-160Hz
- Warranty: 2-Year
Fitment
4-Door Bronco
- Big Bend 2023-26
- Black Diamond 2023-26
- Outer Banks 2021-26 (2021-22 B&O Audio Only)
- Heritage Edition 2023-26
- Badlands 2021-26 (2021-22 B&O Audio Only)
- Everglades 2023-26
- Wildtrak 2021-26 (2021-22 B&O Audio Only)
- Heritage Limited 2023-26
- Raptor 2022-26 (2022 B&O Audio Only)
Notes
- 2021–2022 Compatibility: This system is designed to plug directly into the factory subwoofer output harness.
- Why it doesn't fit Standard Audio (2021–22): Models from 2021–2022 equipped with the standard 6-speaker system (Non-Lux Package) do not have this subwoofer output harness pre-installed from the factory. Without this harness, there is no signal connection available for this subwoofer to function.
